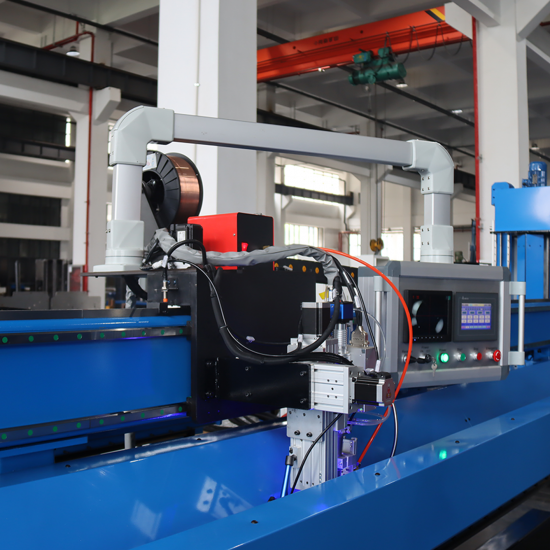

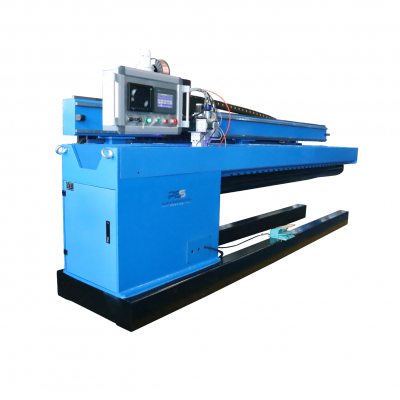

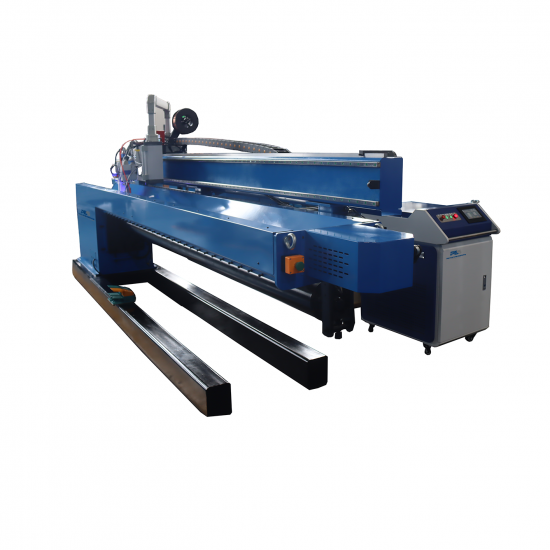

Straight Seam Automatic Welding Machine

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling
effect, reduces the deformation of welding and post weld heat-affected zone of the
weld impact. Thus ensuring the work-piece welding is flat and smooth.
Welding process using a welding process of welded forming on both sides, ensuring
weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals.
Customers can choose the equipment, gas protection, water cooling, seam tracking.

Brand:
PES LASER

Inquiry now

Categories

New Products

Overview
Features
Specifications
RFQ

Application Scope: The platen-type longitudinal seam welding machine is primarily suitable for straight seam butt welding of medium-thin metal workpieces such as carbon steel, stainless steel, and other metallic materials. The longitudinal seam welder can clamp and weld workpiece structures including: metal sheets, cylindrical workpieces, conical cylinders, truncated cones, as well as box structures and flat plate splice joints.

Main Features:

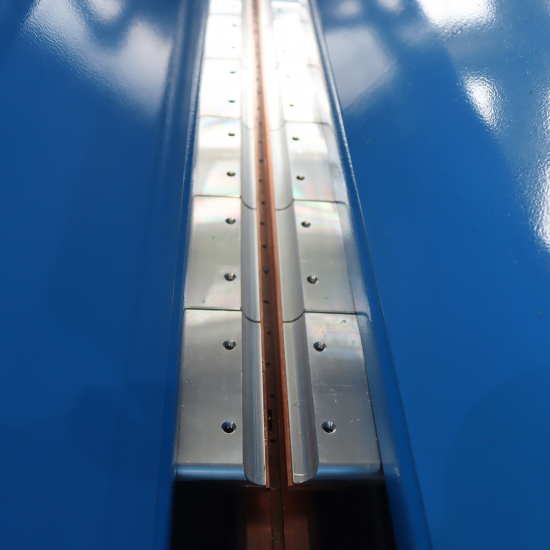

Ø The design principle of this equipment utilizes a piano-key clamping mechanism to provide balanced workpiece holding and cooling effects. During welding, excess heat from the workpiece is rapidly dissipated from the weld seam, reducing the risk of burn-through, warping, and deformation of the workpiece.

Ø This equipment enables single-sided welding with double-sided formation. Many weldable metal materials can be welded using this automatic welder, such as stainless steel, carbon steel, weldable aluminum alloys, and other metal materials.

Ø The advanced control system, user-friendly human-machine interface, high degree of automation, and stable and reliable performance ensure efficient operation.

Ø It can be integrated with welding power sources and torches such as TIG (tungsten inert gas welding), MIG/MAG (metal inert gas/metal active gas welding), PAW (plasma arc welding), and SAW (submerged arc welding) to form an automatic welding system.

Optional Accessories: TIG automatic wire feeding system, welding machine, adjustable-height feeding platform truck, etc.

Technique Parameters

Applicable diameter	250mm-650mm
Applicable length	400mm-1200mm
Material thickness	0.5mm-5mm
Material	mild steel,stainless steel,other metals
Control system	PES LASER
Welding speed	700mm/min
Welding torch moving range in left-right direction	100mm
Welding gun lifting range	100mm
Welding power source	PES LASER
Machine working voltage	380v 3phase 50hz

Q: What is the minimum diameter the machine can weld?
A: It is about 110mm inner diameter.
Q: Can we weld square work-piece?
A: Yes, please offer us your work-piece dimension.
Q: Is discontinuous welding available?
A: Yes, some simple settings.
Q: What parameters do we have to offer while sending inquiry?
A: Your work-piece length / diameter range and material.
