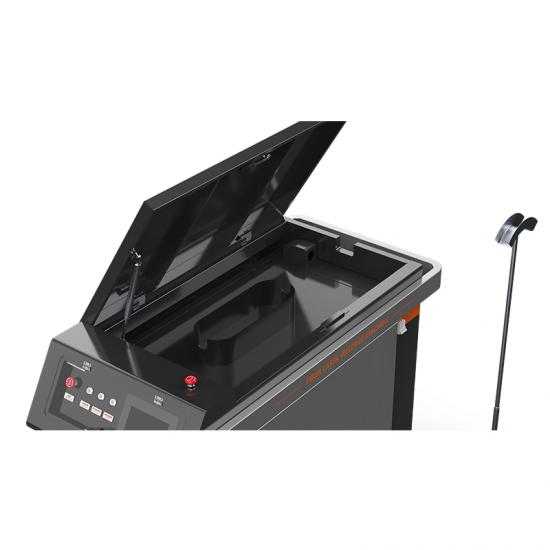

3000 Watt Handheld Fiber Laser Welding Machine

Along with the development of fiber laser source , hand-held laser welding machine was widely used and changed the industrial welding market by making it much simple for different angle and welding processing like tailored welding ,overlap welding ,T-profile welding ，Internal/external corner welding and wire feefer .it could completely replace the application of traditional arc welder and electric welder technology in thin stainless steel ,iron sheet, aluminum plate and other metal sheet.

Brand:
PES LASER
Item NO.:
PES-W1000
Order(MOQ):
1
Payment:
30% DEPOSIT,70% BEFORE DELIVERY
Product Origin:
CHINA
Shipping Port:
SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
Lead Time：
7 day
Product weight:
250KG

Inquiry now

Categories

New Products

Overview
Features
Specifications
RFQ

Handheld laser welder speed is 4-10 times faster than the traditional TIG/MIG welding
Easy to operate, no need welding work license, unskilled operator can also weld products beautifully
Can weld metal products of different materials and thicknesses
Low welding heat, no deformation of the workpiece
Smooth and beautiful, which reduces the subsequent grinding process and saves time and cost by laser welder

Compare with Traditional Welding

Unskill worker can get started in 10 minutes,The welding speed is 4-10 times that of traditional welding, saving 3-5 professional welders. Concentrated energy, low thermal deformation, beautiful welding seam, deep penetration, high strength, can weld thin materials, can be welded by filler wire, or welded without wire.

High professional and technical requirements, high wages for workers, occupational diseases, large body injuries, slow welding speed, low efficiency, large heat influence and easy deformation, thick and irregular welds, requiring secondary polishing, large limitations, and can not weld too thin materials.

	Traditional welding	Handheld Laser welding machine
Welding speed	Common	4-10x faster
HeatAffected zone	large	small
Deformation	large	small
Bond strength with base material	Common	Excellent
Subsequent processing	Polish	No or very little polish
Consumables	any	Little
Operation difficulty	Complicate	Simple
Operator safety	Not safe	Safe
Impact on the environment	Pollutional	Enviromental
Welding fault tolerance	Good	Good
Pendular welding	No	yes
Adjustable spot width	No	Yes
Welding quality contrast	Bad	Excellent
Adjustable Welding mode	No	Six Mode

PES-W3000 Laser Welding Capacity

Material	Thickness Single side weld	Thickness Double side weld	Thickness Wire weld
Stainless steel	6mm	12mm	5.5mm
Galvanized steel	6mm	12mm	5.5mm
Mild steel	6mm	12mm	5.5mm
Titanium alloy	6mm	12mm	5.5mm
Aluminum	5mm	10mm	4.5mm
Copper	3mm	5mm	2mm

	High efficiency of electro-optic conversion Resistance to high resistance Output fiber length can be customized Maintenance free operation Wide modulation frequency range ------MORE DETAILS
SIX different welding modes to meet different welding process Adjustable welding width with wobble function to meet wider seams The machine is equipped with auxiliary cutting function The machine is equipped with auxiliary weld cleaning function Adjustable laser power from 100watt to 1000watt for different thickness materials ------MORE DETAILS
	Built-in industry Chiller, No External Chiller Required Built-in water temperature alarm function for safe production Dual temperature and dual control ------MORE DETAILS
Automatic wire feeder for less than 1.6mm seam welding Adjustable speed Wire roll weight less than 15kg Wire diameter 0.8,1.0,1.2,1.6mm, Aluminum 1.2mm ------MORE DETAILS

Laser Beam	3000watt Raycus Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling	Built-in Industrial Chiller（Purified water or distilled water）
Cable length	Fiber cable lenght 10m, Operable cable length 8m
Weld Head	Handheld Wobble welding head with six weld mode,one cutting mode,changeable nozzle for different welding processing
Wobble width	Adjustable 0-5mm
Protection Gas	Argon/Nitrogen Pressure 5-10L/min
User Interface	For Laser Control:Power,Frequency,Duty cycle. Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion
Language	Chinese-English-Russian-Korean-Vietnamese
Safty	Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm.
Power Requirement	3800±10% V AC, 50/60Hz CUSTOMIZATION
Operating Ambient Temperature(℃)	10~40℃
Humidity (%)	70
Dimensions(W×H×D)	70011501200mm
Weight	250kg

QUESTION I.Why Chose PES LASER WELDER?

“Professional handles professional affairs”

2018.12 The Ⅰ Generation Non-Wobble handheld laser welding machine be published.

Non-Wobble welding head
welding seam≤0.1mm
Split cabinet，External Chiller

2019.6 The II Generation Wobble handheld laser welding machine be published.

Wobble welding head，Wobble mode "O"
welding seam≤0.3mm
Build-in Chiller

2020.1 The Ⅲ Generation handheld laser welding machine be published.

Wobble welding head with automatic wire feeder
welding seam ≤1mm

2021.1 The Ⅳ Generation handheld laser welding machine be published.

Double Wobble welding head updated. with 6 welding mode,1 cutting mode and 1 cleaning mode
welding seam ≤1.5mm
