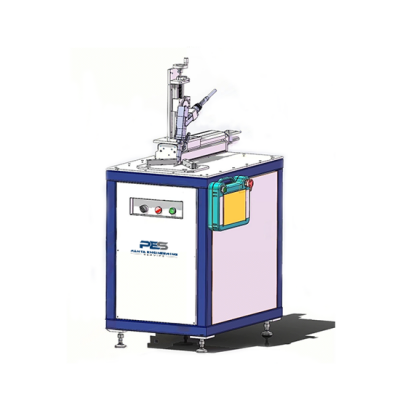

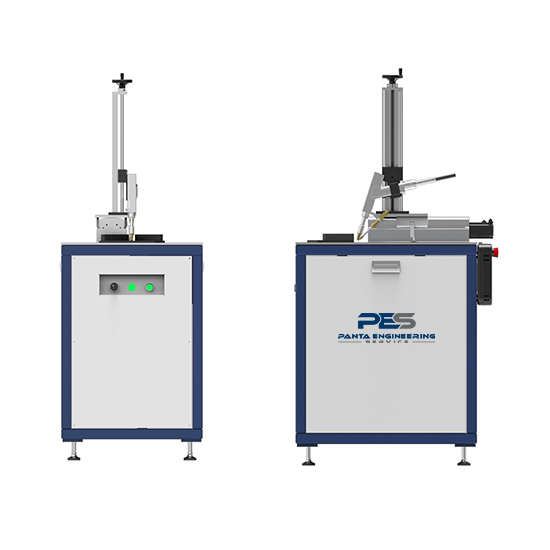

Small Size Automatic Flat Right-Angle Welding Platform

The welding platform is a device specifically designed for welding the edges and corners of workpieces. This equipment has the advantages of high work efficiency, high degree of automation, good weld consistency, simple operation, and low requirements for weld quality. Using this equipment to replace manual welding of workpieces greatly automates the welding process. It significantly improves the efficiency and quality of traditional manual welding, greatly reduces the labor intensity of workers, significantly lowers the skill and physical requirements for welders, and reduces welding labor costs. The auxiliary welding platform developed and produced by our company can be equipped with various welding equipment (such as laser welding machines, TIG welding machines, and CO2 gas shielded welding machines) for flexible replacement.

The welding platform is a modular fixturing system built on a precision grid base, designed to position and clamp workpieces with high repeatability. Its main function is to provide a versatile and flexible foundation for automation, transforming any welding process into a more efficient, precise, and adaptable automated operation.

The 3-axis welding platform is a device specifically designed for welding the edges and corners of workpieces. This equipment has the advantages of high work efficiency, high degree of automation, good weld consistency, simple operation, and low requirements for weld quality. Using this equipment to replace manual welding of workpieces greatly automates the welding process. It significantly improves the efficiency and quality of traditional manual welding, greatly reduces the labor intensity of workers, significantly lowers the skill and physical requirements for welders, and reduces welding labor costs. The auxiliary welding platform developed and produced by our company can be equipped with various welding equipment (such as laser welding machines, TIG welding machines, and CO2 gas shielded welding machines) for flexible replacement.

Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Laser cutting machine is an advanced tool that uses high-power laser beam to cut various materials. Its working principle is to focus the high-energy laser beam on the surface of the material, thereby locally heating and melting the material, and using auxiliary gas (such as oxygen, nitrogen or compressed air) to blow away the molten material to achieve cutting. Brand: PES LASER Item NO.: PES-T3000 Order(MOQ): 1 Payment: 30% DEPOSIT,70% BEFORE DELIVERY Product Origin: CHINA Shipping Port: SHANGHAI/NINGBO/GUANGZHOU/QINGHAI Lead Time： 35 day Product Weight: 3000KG

Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Assembly and Welding Joint Intelligent Work Island is mainly used in the welding production of steel structure prefabricated buildings, steel structure roof beams, H-shaped steel beams and columns, and other types of intelligent production lines. The compatibility of the welding joint work island with the ground rail and the adaptability of the welding joint workstation. The system deeply integrates assembly and welding processes, and interacts with PLC signals after importing models to determine incoming material data. By scanning the base material and component materials through a visual system, accurate material retrieval and placement positions are obtained. The weld seam type and data are obtained through a model, and then integrated with a fabric welding expert library to automatically generate welding programs and execute welding.

Eight Axis Gantry Intelligent Workstation is mainly used for the welding production of plate unit structure type workpieces in ships, bridges, and environmental protection equipment. The eight axis gantry workstation is compatible with the adaptability of ground rails, seven axis cantilevers, eight axis cantilevers, and seven axis gantry workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
